Data Driven Testing -SoapUI Pro/Ready API Part 1 -Using Excel

In this blog, lets discuss about how to do Data Driven In Soap UI using Excel file and follow the steps Soap Ui to generate data and run the Test Case.


Ready API

ReadyAPI is an easy-to-use no-code API Testing platform designed to streamline your testing workflows. Automate and scale your end-to-end tests across multiple API types. Run compatible load tests against your functional tests. Enable virtualization to ensure fast and reliable integrations for your development teams.


Data driven testing


In this blog lets learns how to do Data Driven Testing

Run test case with multiple set of data and maintain the data in Excel , Notepad, JSON, XML,,. Use that data as an input for our Request


Different types of Data Source Types

  • Data Connection

  • Data Generator

  • Excel

  • File

  • JDBC

  • Grid

  • Groovy

  • JSON

  • XML

  • Directory




we can do Data driven using following Sources

  • Data Driven Testing Using Text File

  • Data Driven Testing Using Grid

  • Data Driven Testing Using Data Generator

  • Data Driven Testing Using JDBC(MySQL Database)




Data Driven testing using Excel


Send Request with multiple set of Data like Countries, for each country ,we will Verify ISO code is correct or not .


Excel Sheet

Countries

ISO Code

Argentina

AR

Australia

AU

Belgium

BE

Brazil

BR

Colombia

CO

  • Download SoapUI Pro

  • After downloading

  • In Ready API

  • Go to file , click New Empty Project




Give Project Name as FootballSoap



When you click Project FootballSoap , you will be asked to Create or Import API , select Import API




Give the WSDL URL

https://ws.footballpool.dataaccess.eu/info.wso?wsdl

select WSDL Definition ( SOAP)



Advanced option , select Create Sample requests for all operations and click Import API




API is downloaded





Right click InfoSoapBinding and click New Test Suite




Create New Test Suite

Select one Request for countries




Give name for Test Suite




Test Suite with Test Case and Request will be created as shown

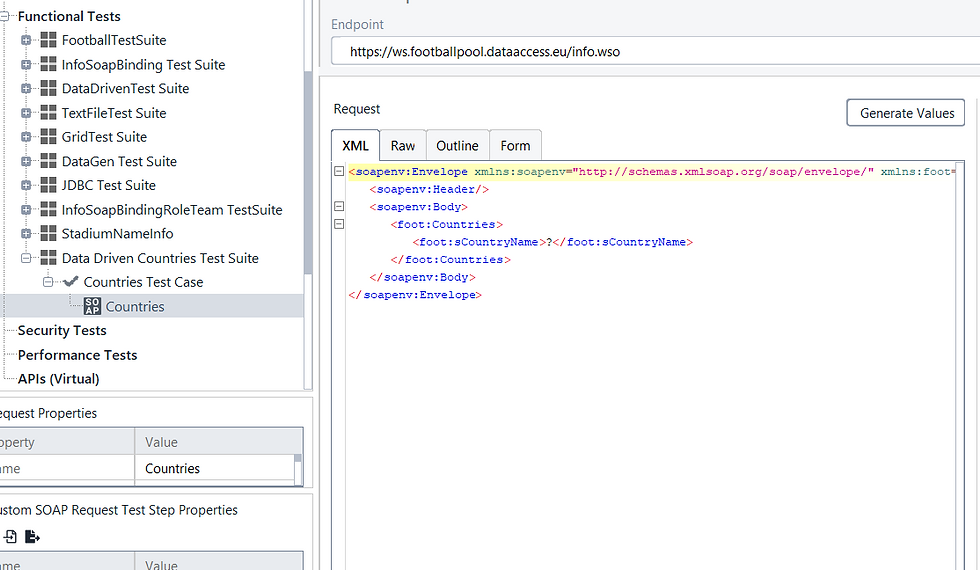

Click the countries Request , you will see XML code for the request - ? is parameter to be passed



Write India as Parameter and click send or run icon , You will get Response with ISO Code for India





Now we are going to do Data Driven Testing , where we are going to give set of country name with ISO Code through Excel and verify the Corresponding ISO Code for each country

So Data Source here is Excel file


Once you add Data Source , you will find the structure on left side which will have

  • Test Suite

  • Test Case

  • Countries

  • Data Source

Click + to add Properties



Now we have to add properties , so click green + button to add properties

  • CountryName

  • ISO Code






You can see the properties has been added




Now we are going to add Excel file , select excel from Data Source dropdown


It will ask Do You want to import properties ? , click No , as we have added the properties manually

It will give as this setting to fill about the excel details

Give excel sheet path

Sheet Name : Sheet1

Give A2 , as from A2 we have the data , A1 has headings



Now Click the green run icon to download all data from Excel file

It will pop up with this message

5 means , 5 rows in excel ....



Enter 0 , 0 means all rows in excel


Once You click Ok , all the details from excel sheet will be downloaded into soap UI , you will be seeing below all the details are added




Now we have to repeat the request multiple times , so we are going to put Request in Loop , so add Data Source Loop



Select Data Source Loop



Give any name and Click OK

Once data source loop is added , you ca see the structure as below



You have to arrange by drag in this order

Data Source - data is taken from data source

Countries Request - request

Data source loop - run request in loop


To take countries name from data source , click Data source loop and select

Data Source Step : Data source

Target Step : Countries


Add Data Source Loop

Take data from source for the Countries Request


You will see this page , click the Input box or ... dots



Now we have to set the flow as below to get Country name from data source and click Add


Once u add , it will appear like this ${Data Source#Country Name}


Click XML , you can see the parameters has been changed



Now we have to verify the ISO Code from response

Go to response , right click on ISO Code and click Validate



It will move to Assertion Page

you will see the xpath of the ISO Code from XML in XPath Expression



You will be seeing IN in expected Result , we have to Verify result for all the countries mentioned in Data source Excel , so right click Select Content and follow the flow and select Property ISO Code




Once you have given the Data source for ISO Code , it will appear as below in Expected Result

Click Save

So we have to run the whole Test Case multiple times , so go to Countries Test Case left side and click , you will see the below image

Click Run Icon in green button


So now Data Driven for multiple data with single request is done




You can see Transaction Log , for each request , it will run Data source , Countries , Data source Loop



Conclusion:


I hope, This article will help you to understand How to do Data Driven Testing Using Excel in Soap UI Pro.

In Next , Part 2 Blog , lets see how to do data driven using Grid, Data Generator, Text File and JDBC . We will be learning how to do Data driven and save the result in excel automatically. https://www.numpyninja.com/post/part-2-data-driven-testing-soapui-pro-ready-api-data-sink-data-driven-and-save-result



You must have got an idea on the topics explained in this blog. Lets explore more and learn New Topics.


Happy Learning
